BUILT THE WATCO WAY

STI F921®

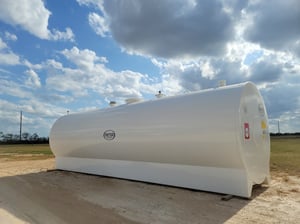

A double-wall steel aboveground storage tank with integral secondary containment, engineered for reliable and compliant fuel storage.

Download Full Brochure





WATCO TANKS

F921® Features:

F921

Key Technical Advantages

Design Efficiency

The robust double-wall steel design provides built-in, impermeable secondary containment while maintaining an efficient aboveground storage footprint
Durability

Steel construction delivers long-term structural integrity and dependable performance for aboveground fuel storage applications
Fuel Compatibility

Steel construction ensures compatibility with all hydrocarbons and can be configured for DEF and JetA/AV Gas applications, supporting a wide range of fuel storage requirements
Installation Considerations

The aboveground double-wall design with integral secondary containment supports compliant installation without the need for external containment systems
Sustainability

Manufactured from recyclable steel, supporting environmental responsibility and sustainability initiatives
Built-in Safety

Integral secondary containment meets EPA SPCC requirements, while a testable interstitial space allows for continuous leak detection monitoring to support safe operation
Capacity Range

Available in horizontal and vertical designs with capacities of up to 35,000 gallons, offering versatility for a wide range of aboveground storage needs
Watco Tanks Strength in Layers

F921®

The F921® tank meets UL142 standards for steel aboveground tanks designed for flammable and combustible liquids. The double-wall design offers integral impermeable secondary containment.

F921 Layers (1)-01

F921® Design Specifications

Standard Dimensions and Tank Capacities

Diameter Capacity Length +/- 2" Weight +/- 5%
45.5" 1,000 gal 12'-0" 2,600 lbs
72" 5,000 gal 24'-2" 9,000 lbs
96" 5,000 gal 13'-7" 9,000 lbs
96" 10,000 gal 27'-2" 15,000 lbs
96" 12,000 gal 32'-7" 18,000 lbs
120" 12,000 gal 20'-10" 18,000 lbs
120" 15,000 gal 26'-0" 21,000 lbs
120" 20,000 gal 34'-8" 27,000 lbs
120" 30,000 gal 52'-0" 39,000 lbs
F921®

Installation

  • Aboveground configuration supports flexible site placement
  • Integral secondary containment eliminates the need for external containment structures
  • Testable interstitial space allows on-site verification and monitoring
  • Optional accessories available, including remote fill lines, pump platforms, observation ladders, maintenance platforms, catwalks, stairways, and custom fabrications
  • Reliable delivery scheduling with coordinated support
F921 (3)

Proven Quality Through Independent Oversight


Each F921® tank meets UL 142 standards for steel aboveground tanks used for flammable and combustible liquids, ensuring compliance, safety, and performance. All tanks are backed by STICO Mutual’s 30-year limited warranty.

Watco Tanks undergoes independent third-party inspections by UL and STI, including eight unannounced audits annually. Since the inception of the inspection program over 25 years ago, Watco has maintained a flawless record — one of only three STI-certified manufacturers to do so.
skid tank (1)-1
Available Designs:
  • Horizontal
  • Vertical
Economical Double-Wall Design

F921® Guideline Specification


General
  1. Provide F921® double‐wall steel aboveground storage tanks.

Labeling
  1. Tanks shall bear the Steel Tank Institute F921® Double‐Wall Aboveground Storage Tank identification label.

Manufacturer
  1. The manufacturer shall be a licensed member company of the Steel Tank Institute and subject to Steel Tank Institute’s Quality Assurance program.
Product Description
  1. Tanks shall be manufactured in accordance with Steel Tank Institute F921® , Standard for Double‐Wall Aboveground Storage Tanks.
  2. Aboveground tank primary and secondary containment (inner and outer walls) shall be manufactured in accor‐ dance and listed with Underwriters Laboratories UL 142, Standard for Steel Aboveground Tanks for Flammable and Combustible Liquids.
  3. Tanks shall be double‐wall with a steel inner wall for primary containment and provide integral secondary containment by an impervious steel outer wall.
  4. Integral secondary containment shall be testable and provide access for interstitial leak detection monitoring.
  5. Listed supports shall be used for all horizontal, rectangular and vertical double‐wall tanks. Supports are designed for seismic loading, if necessary.

Trusted Watco Tanks Affiliates

Watco Tank Manufacturing Shot

Top U.S. Producer of STI Technologies

Watco Tanks was recognized as the largest U.S. producer of STI Technologies in 2021 and the second-largest worldwide, with over 5 million gallons built in 2021 and over 6 million gallons each in 2022 and 2023.
